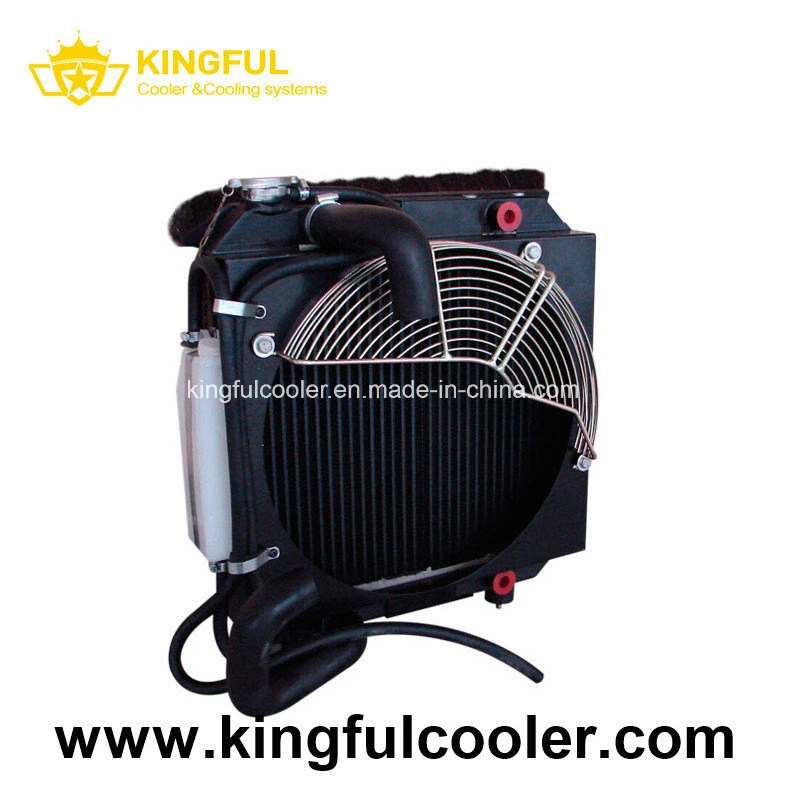

Heavy Machinery Tractors Parts Agricultural Machinery Radiator/heat exchanger
Product photos

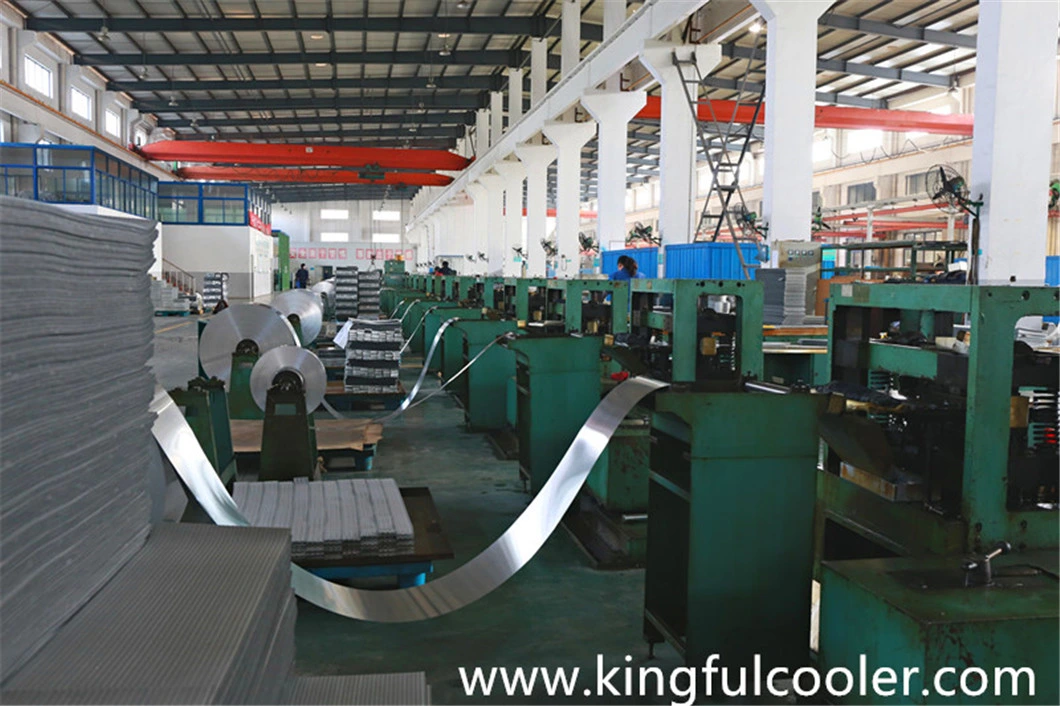

Factory Equipment
Certificate
Exhibition
Packing
Contact information
| Specification | ||||
| Medium | Air. Oil. Water. Wind | |||
| Fin types | Application | Features | Width series | |
Fins | BW(wavy-fin) | External fin | Widely used(better heat emission capacity) | 2.0mm, 2.5mm, 3.0mm, 3.8mm 4.7mm, 5.6mm, 6.5mm, 8.0mm, 9.0mm, 9.5mm, 10.3mm, 11.3mm 11.7mm, 12mm |
| JC(serrated-fin) | Internal&external fin | Widely used(better heat emission capacity); Large friction resistance | ||
| DK(perforated-fin) | Internal fin | |||
| PZ(plain-fin) | Internal&external fin | Used in construction machinery | ||
| BY(Louvered-fin) | External fin | |||
| Heavy Machinery Tractors Parts Agricultural Machinery Radiator/heat exchanger | ||||
|
| |||
| Classification according to The Application | For engineer machinery(excavator, loader, bulldozer, roller, drilling, crane, paver, scraper and so on) For compressor(screw compressor and reciprocating compressor) For chemistry industry For petroleum chemical industry For automobile For watercraft, marine engineering For offshore engineering For steel industry For HVAC For textile industry | |||
| Description |
| Painting: Black, silver, powder coating or according to customers requirements. |
| Features |
| 1. Combination welded cores-air&oil cores |
| 2. Brazed aluminum core/bar and plate |
| 3. Excellent for field conversions |
| 4. Compact design |
| 5. Light weight |
| 6. Compact, high performance all aluminum core assembly |
| 8. Could be assembled with Fan and Fan cover |
| Working pressure: 2-40 bar |
| Working temp: -10-220 Deg C |
| Ambient temp: 0-70 Deg C |
| 6. Used for air compressor: 2KW-400KW |
